Light Intensity and Solar Panel Energy Detector

Things used in this project

Hardware components
Arduino Nano R3Arduino Nano R3×1
SparkFun Solder-able Breadboard - MiniSparkFun Solder-able Breadboard – Mini×4
Photo resistorPhoto resistor×3
LED (generic)LED (generic)×9
Resistor 221 ohmResistor 221 ohm×12
Jumper wires (generic)Jumper wires (generic)×1
Software apps and online services
Arduino IDEArduino IDE



I upgraded this project by designing a PCB with more features, you can inspect the enhanced version from here 🙂


I wanted to approximately evaluate the amount of energy generated by a solar panel in a given direction by using light intensity values produced by photoresistors. Solar panels generate a high amount of energy under high solar radiation relative to the light intensity which is why I intended to use light intensity levels as indicators assigned to LED colors – red, yellow, and green. In other words, this project is for predicting the amount of energy generated by a solar panel between three light intensity thresholds, and also notifies you when the high threshold exceeded.

Evaluate the amount of the energy generated by a solar panel at a given direction through light intensity levels.

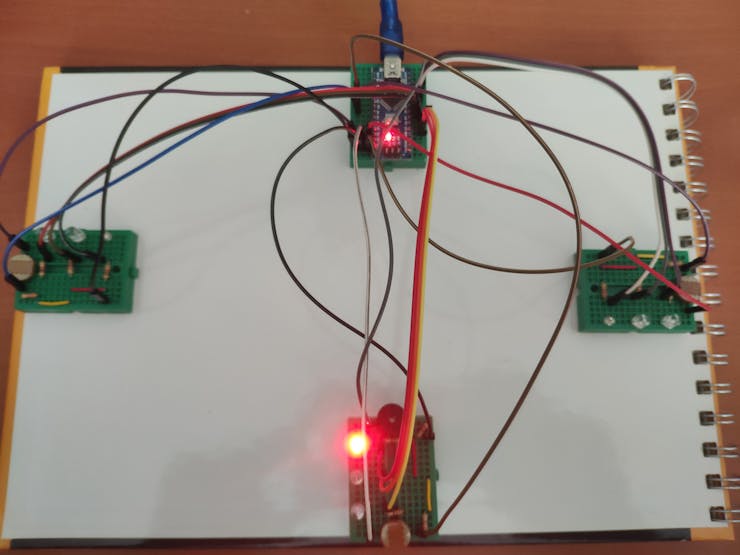

You can find a detailed connections guide at the code below.

Define threshold values to get accurate data

Energy production thresholds has three level at which LED colors change:

Low – Red

Moderate – Yellow

High – Green

Also, if you want, get the output through serial ports.

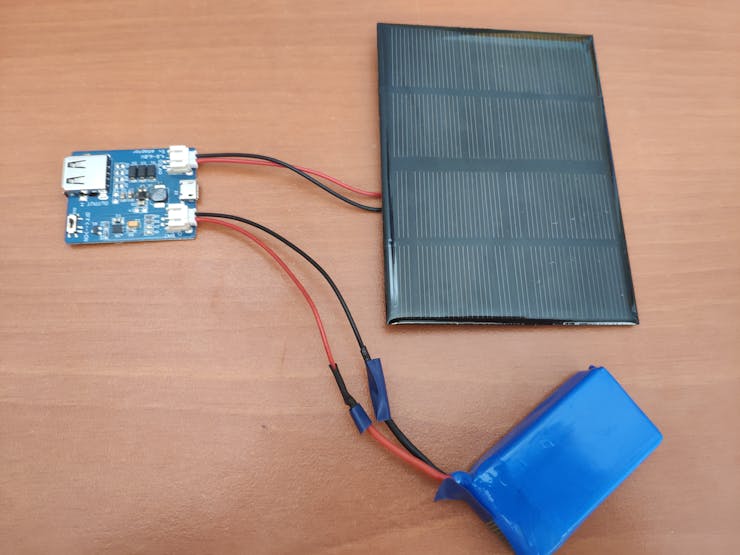

Now, you can use it to charge your Li-Po battery properly via a solar panel.

        //  Light Intensity and Solar Panel Energy //
       //                Detector                 //
      //             ---------------             //
     //             (Arduino Nano)              //
    //             by Kutluhan Aktar           //
   //                                         //

// This project is for predicting the amount of energy generated by a solar panel under the light intensity level given by photoresistors which are placed in three different directions.
// The amount of energy generated by a solar panel is related to the amount of solar radiation which is why I used the light intensity level as an indicator to evaluate it approximately.
// Energy production thresholds has three level at which led colors change:
// Red - Low
// Yellow - Moderate
// Green - High
// You can define threshold values below.
// Connections
// Arduino Nano :
//                                controlLed_1_1 [red]
// D2  ---------------------------
//                                controlLed_1_2 [yellow]
// D3  ---------------------------
//                                controlLed_1_3 [green]
// D4  ---------------------------
//                                controlLed_2_1 [red]
// D5  ---------------------------
//                                controlLed_2_2 [yellow]
// D6  ---------------------------
//                                controlLed_2_3 [green]
// D7  ---------------------------
//                                controlLed_3_1 [red]
// D8  ---------------------------
//                                controlLed_3_2 [yellow]
// D9  ---------------------------
//                                controlLed_3_3 [green]
// D10 ---------------------------
//                                Buzzer
// D11 ---------------------------
//                                LDR [1]
// A1  ---------------------------
//                                LDR [2]
// A2  ---------------------------
//                                LDR [3]
// A3  ---------------------------

  // Define control leds as indicators.
  #define controlLed_1_1 2
  #define controlLed_1_2 3
  #define controlLed_1_3 4
  #define controlLed_2_1 5
  #define controlLed_2_2 6
  #define controlLed_2_3 7
  #define controlLed_3_1 8
  #define controlLed_3_2 9
  #define controlLed_3_3 10
  // Define Ldr analog pins to calculate solar panel energy and light intensity.
  #define Ldr_1 A1
  #define Ldr_2 A2
  #define Ldr_3 A3
  // Define the buzzer pin.
  #define buzzerPin 11

  // Define solar panel variables emphasized by the guide. Do not forget to change them.
  #define SP_area 0.0088
  #define SP_efficiency 6.2
  #define SP_coefficient 0.75

  // Define threshold values(low, moderate).
  #define low 8.18
  #define moderate 18.40
  // Define variables to collect light intensity data.
  int LdrData_1;
  int LdrData_2;
  int LdrData_3;

void setup() {
  // Start serial ports.
  Serial.print("System Activated:");
  Serial.print("Please connect all photoresistors and led to the defined Arduino Nano pins before uploading the code.");
  Serial.print("Do not forget to change solar panel variables and threshold values!");
  // Start led outputs.
  pinMode(controlLed_1_1, OUTPUT);
  pinMode(controlLed_1_2, OUTPUT);
  pinMode(controlLed_1_3, OUTPUT);
  pinMode(controlLed_2_1, OUTPUT);
  pinMode(controlLed_2_2, OUTPUT);
  pinMode(controlLed_2_3, OUTPUT);
  pinMode(controlLed_3_1, OUTPUT);
  pinMode(controlLed_3_2, OUTPUT);
  pinMode(controlLed_3_3, OUTPUT);


void loop() {

  // Initial the indicators at three different directions.
  // Control_1
  IndicatorInitial(SolarPanelEnergy(SP_area, SP_efficiency, LdrData_1, SP_coefficient), controlLed_1_1, controlLed_1_2, controlLed_1_3, 1);
  // Control_2
  IndicatorInitial(SolarPanelEnergy(SP_area, SP_efficiency, LdrData_2, SP_coefficient), controlLed_2_1, controlLed_2_2, controlLed_2_3, 2);
  // Control_3
  IndicatorInitial(SolarPanelEnergy(SP_area, SP_efficiency, LdrData_3, SP_coefficient), controlLed_3_1, controlLed_3_2, controlLed_3_3, 3);


void gatherLdrData(){
   // Gather light intensity data from photoresistors each placed in a particular direction.
   LdrData_1 = analogRead(Ldr_1);
   LdrData_2 = analogRead(Ldr_2);
   LdrData_3 = analogRead(Ldr_3);
  float SolarPanelEnergy(float Area, float Efficiency, int Radiation, float PerformansCoefficient){
     // Calculate the energy level of a solar panel approximately by assigning radiation levels to light intensity levels.
     float Energy = Area * Efficiency * Radiation * PerformansCoefficient;
     return Energy;

    void IndicatorInitial(float predictedEnergy, int red, int yellow, int green, int number){
         // Adjust the range of the indicators according to the amount of the energy generated by a solar panel. And, get notified when the high threshold exceeded.
         // Write which control ldr gathers data.
         Serial.print("Control [");
         Serial.print("] = \t");
         if(predictedEnergy < low){
           digitalWrite(red, HIGH);
           digitalWrite(yellow, LOW);
           digitalWrite(green, LOW);
          }else if(low <= predictedEnergy && predictedEnergy < moderate){
             digitalWrite(red, HIGH);
             digitalWrite(green, LOW);
            }else if(predictedEnergy >= moderate){
               digitalWrite(red, HIGH);
               digitalWrite(yellow, HIGH);
               digitalWrite(green, HIGH);
               tone(buzzerPin, 300);
